| Plaats van herkomst: | China |
|---|---|
| Merknaam: | iBoard/ OEM |
| Certificering: | CE FCC ROHS |
| Modelnummer: | Le-32 |
| Min. bestelaantal: | 10 stukken |
| Prijs: | USD50-USD3000 per pieces |
| Verpakking Details: | SKD-de uitvoerkartons of plastic pijp, of de uitvoerkarton voor de touche screnen van het de aanraki |
| Levertijd: | 10 werkdagen |
| Betalingscondities: | L/C, T/T, Western Union |
| Levering vermogen: | 20000 stukken per maand |
| Productnaam: | aanrakingskader, de aanrakingskader van IRL, infrarode touch screenbekleding, de aanrakingsuitrustin | RESOLUTIE: | 32768 x 32768 |
|---|---|---|---|
| type: | Infrarode aanrakingstechnologie | interfacetype: | Periodiek USB, |
| Aanrakingspunten: | 10 de punten, kunnen worden aangepast, 1~40 punten | Grootte: | 22“ 32“ 42“ 43“ 49“ 50“ 55“ 65“ 70“ 75“ 80“… 300“ |
| Toepassing: | Het onderwijs, vergadering, opleiding, onderwijs | Besturingssysteem: | WINST, Android, facultatief MAC |
| Interface: | USB2.0/3.0 | Garantie: | 2 jaar |
| Materiaal: | Het Kader van de aluminiumlegering | Kleur: | Zwarte of Aangepaste kleur |
| Leveringsvoltage: | Gelijkstroom 5V | Voeding: | usb aangedreven |

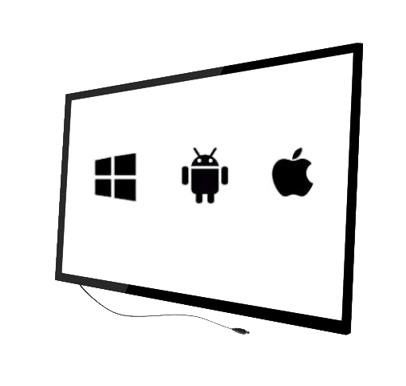

Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device. It support multi-touch, with smoothly writing experience.
Application
Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...
Available sizes
Size: 21.5”~300”
Customized sizes available
1~40 touch points available
SKD available
Specification
| Name | Specification |
| Touch Technology | Infrared Touch Technology |
| Touch Points | 2, 10, 20, 40 touch points available |
| Touch Input Method | Finger, Pointer, Styplus pen or any other Opaque objects |
| Touch Interpolation | 32768 x 32768 |
| Respond Time | 5-10 ms |
| Touch Accuracy | ±2mm (over 90% Area) |
| Touch Durability | Unlimited |
| Available Size for Touch | Φ5mm |
| Supply Voltage | DC+5V±10% |
| Operating Current | <200mA for some sizes of some series; ≤500mA for some sizes of some series |
| Supporting System | Windows/Mac OS/Linux/Android/Chrome OS |
Packing
For multi-touch screen overlays with glass:
For multi-touch ir touch frame disassemble in SKD mode:
